INA Crossed Roller Bearings XSU/XU Series(without Gear Teeth)



Designation Boundary Dimension Mounting Hole Size Basic load ratings Mass
INA Da di Di da H La na Li ni Coa
(KN)
(Kg)
XSU 14 0414 484 344 415 413 56 460 24 368 24 520 28
XSU 14 0544 614 474 545 543 56 590 32 498 32 680 38
XSU 14 0644 714 574 645 643 56 690 36 598 36 800 44
XSU 14 0744 814 674 745 743 56 790 40 698 40 930 52
XSU 14 0844 914 774 845 843 56 890 40 798 40 1050 60
XSU 14 0944 1014 874 945 943 56 990 44 898 44 1170 67
XSU 14 1044 1164 1024 1095 1093 56 1140 48 1048 48 1360 77
XU 05 0077 112 40 77.5 74 22 97 6 56 6 14.3 1.4
XU 06 0094 140 57 94.6 93.4 26 120 6 70 6 20.7 2.4
XU 06 0111 145.79 76.2 111.8 -- 15.87 133.1 8 88.9 8 22.8 1.2
XU 08 0120 170 69 120.6 119.4 30 148 6 90 6 35.5 4
XU 08 0149 196.85 101.6 149.6 -- 22.22 177.8 16 115.8 16 40 3.6
XU 12 0179 234 124.5 180.2 178.2 35 214 12 144.5 12 75 7

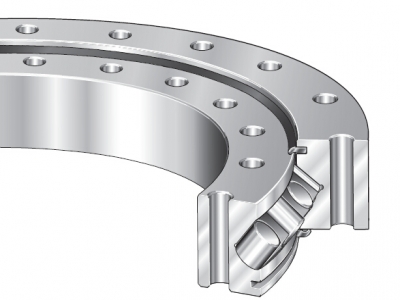

INA crossed roller bearing Series XSU and XU (Without Gear Teeth Type)
 LYNBC would have produced crossed roller bearing Series XSU and XU with without gear teeth professionally. And it could support high radial loads and moderate axial loads and tilting moment loads, and also be suitable for supported and suspended loads. Crossed roller bearing series XSU and XU have contact seals on both sides that protect the raceway system against dust, contamination moisture. It also has cylindrical rollers to DIN 5402, spacers made from plastic and lubrication nipple on the circumference of the outer ring.
▲   The design’s of all these Crossed Roller Bearing Series XSU and XU are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.
