Thrust Cylindrical Roller Bearings
Releated Products
Parameters



Designation

Boundary Dimension(mm)

Basic load ratings

Limiting Speed

r/min

Mass

New Code

Old Code

d

d1min

D

D1max

H

rsmin

Ca(KN)

Coa(KN)

Grease

Oil

(Kg)
81220 9220 100 103 150 150 38 1.1 226 830 800 1100 2.44
89320 9549320 100 103 170 170 42 1.5 327 1520 760 1000 4.23
87420 - 100 103 210 210 50 3 640 2480 670 900 9.53
81720 9720 100 100.2 190 190 39 1.5 451 2090 720 960 5.11
81722 9722 110 110.2 200 200 39 2.1 460 2195 990 1300 5.43
84922x2 549822 110 111 230 230 60 3 635 2640 720 960 13.7
81124 9124 120 120.2 155 155 25 1 146 680 950 1400 1.36
81224 9224 120 123 170 170 39 1.1 255 900 900 1300 2.94
81724 9724 120 100 215 215 30 1.1 451 2471 850 1200 5.03
- 9549424k 120 116 250 250 78 4 810 2320 800 1100 20.9
81226 9226 130 133 190 190 45 1.5 380 1300 670 900 4.29
81730 9830 150 153 230 227 50 3 553 2370 800 1100 8.22
87430x2 569730 150 150.3 300 300 35 2.1 698 4330 840 1100 11.3
RT43240 - 153.988 153.988 228.6 227.6 50.8 4.76 426 1630 800 1100 7.7
IB448 - 177.8 180 254 253 50.8 3.5 575 2526 700 950 10
81836 9836 180 183 280 277 54 3 803 3717 680 900 13.4
81138 9138 190 193 240 237 37 2 316 1398 800 1100 4.1
81140 9140 200 203 250 247 37 1.1 310 1400 700 900 4.4
81240 9240 200 204 277 280 62 2 670 2490 500 750 12.4
81744ZW 549744H 220 225 420 420 130 6 2380 8095 380 560 94.2
81248 9284 240 244 340 335 78 2.1 990 3765 380 560 24.1
89448 9549488 240 245 440 435 122 6 2360 10770 300 400 89.5
81252 9252 260 264 360 355 79 2.1 1045 4170 350 600 26.4
812/500 92/500 500 505 670 665 135 5 3400 17600 140 190 153
811/530 91/530 530 535 640 635 85 3 1739 9920 160 200 57.6
872/530 75492/530 530 532 710 708 82 5 2280 17800 220 290 96.6
812/560 92/560 560 565 750 745 150 5 3900 20800 120 170 198
817/600 5497/600 600 602 860 860 125 6 3870 12980 130 180 264
872/670 75492/670 670 672 900 900 103 6 3530 26500 160 200 200
871/710 75491/710 710 714 850 848 63 4 1440 13660 240 300 79
891/800 90091/800 800 800 950 950 90 4 1360 9440 160 200 105
871/850 75491/850 850 855 1000 995 67 4 1864 17480 200 260 97.1
811/850 91/850 850 855 1000 995 120 4 3347 22152 160 200 177.2
972/900 75492/900 900 902 1180 1180 125 7.5 5300 50549 100 130 386
872/1060 75492/1060 1060 1065 1400 1400 155 9.5 8950 79390 87 110 639
817/1180 97/1180 1180 1180 1325 - 88.5 3 4430 21700 100 150 173
871/1180 75491/1180 1180 1185 1400 1395 100 6 4430 48665 110 150 311
872/1320 75492/1320 1320 1325 1700 1700 175 9.5 10300 105400 67 90 105



Description

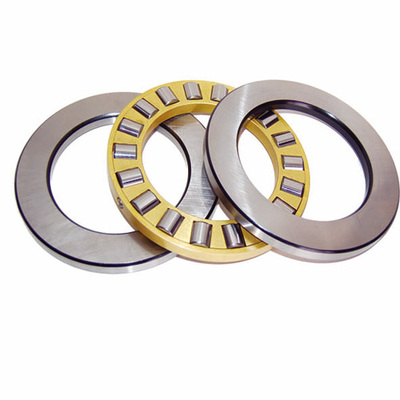

 Thrust cylindrical roller bearings
LYNBC thrust cylindrical roller bearings can sustain only axial loads, but they are suitable for heavy loads and have high axial rigidity. The cages are machined brass.
     ▲ LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.
