NUKR Track Roller Bearings



Designation Dimensions(mm) Basic Load ratings
(KN)
Support wheel
(KN)
Weigh
(kg)
Limit speed
(r/min)
INA CODE D d1 B B1max B2 B3 C C1 d2 IG G rsmin Cr Cor Cw Cow *
NUKR35 35 16 52 19.6 32.5 7.8 18 0.8 20 17 M16X1.5 0.6 23 27 16 18.3 0.164 6500
NUKR40 40 18 58 21.6 36.5 8 20 0.8 22 19 M18X1.5 1 24.8 31 18.5 22.8 0.242 5500
NUKR47 47 20 66 25.6 40.5 9 24 0.8 27 21 M20X1.5 1 39 50 28 34.5 0.38 4200
NUKR52 52 20 66 25.6 40.5 9 24 0.8 31 21 M20X1.5 1 43.5 60 29 37.5 0.45 3400
NUKR62 62 24 80 30.6 49.5 11 28 1.3 38 25 M24X1.5 1 59 79 40.5 51 0.795 2600
NUKR72 72 24 80 30.6 49.5 11 28 1.3 44 25 M24X1.5 1.1 65 93 45 61 1.2 2100
NUKR80 80 30 100 37 63 15 35 1 47 32 M30X1.5 1.1 95 133 67 93 1.8 1800
NUKR85 85 30 35 37 63 15 35 1 47 32 M30X1.5 1.1 83 72     1.74 1800
NUKR90 90 30 100 37 63 15 35 1 47 32 M30X1.5 1.1 95 133 77 110 2.3 1800

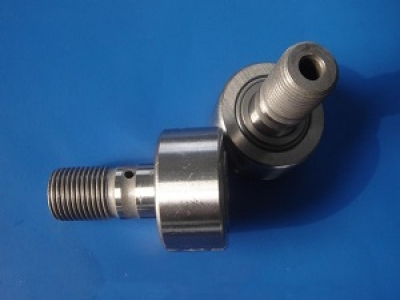

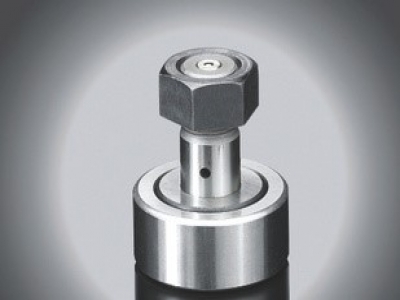

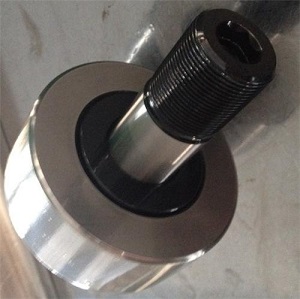

Stud type track rollers
Stud type track rollers are similar in their construction to single and double row yoke type track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole. Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as well as axial loads arising from slight misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment.
Due to a modified material and the optimized raceway geometry of the outer rings for Yoke type track rollers or Stud type track rollers, the basic rating life has been increased by up to 30%.The static and dynamic load carrying capacity has also been increased. At the same time, the stress placed on the mating track has been reduced as a result of the optimised lateral surface profile and its improved surface quality. Due to these measures, highly robust bearing arrangements with an extended operating life can be achieved.
▲   The design’s of all these Stud Type Track Rollers are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.
